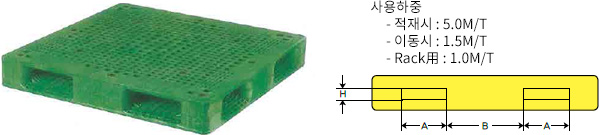

Pallet for automated warehouse

단위 : mm
품명	규격	장측면		단측면		H	중량 (㎏)
품명	규격	A	B	A	B	H	중량 (㎏)
AT4 110ㆍ110	1,100 × 1,100 × 150	245	305	245	305	65	3133
AT4 117ㆍ117	1,170 × 1,170 × 150	245	305	245	305	70	28
AT4 120ㆍ100	1,200 × 1,000 × 150	245	305	245	305	70	28⁵31
AT4 120ㆍ120	1,200 × 1,200 × 150	245	305	245	305	70	39⁵
AT4 130ㆍ110	1,300 × 1,100 × 150	245	305	245	305	65	41
AT4 130ㆍ110	1,300 × 1,100 × 150	270	350	245	300	70	41
AT2 130ㆍ110	1,300 × 1,100 × 140 (2방차입 양면 사용형)	245	305	-	-	65	41
AT4 130ㆍ110	1,300 × 1,100 × 150	245	305	245	305	65	46
AT4 135ㆍ110	1,350 × 1,100 × 150	245	305	245	305	65	42
AT4 140ㆍ110	1,400 × 1,100 × 140	245	305	245	305	55	41
AT4 143ㆍ110	1,430 × 1,100 × 140	245	305	245	305	60	43
AT4 130ㆍ130	1,300 × 1,300 × 150	260	380	260	380	70	39⁵
AT4 150ㆍ130	1,500 × 1,300 × 160 (PPC)	294	430	294	430	70	70
